Palm Tree Towers: Blending Nature with Next-Gen Telecom

Palm Tree Towers: Blending Nature with Next-Gen Telecom
Jun 30, 2025

For telecom operators battling NIMBY ("Not In My Backyard") resistance in scenic or urban areas, palm tree towers offer a revolutionary solution. These stealth telecommunication structures mimic natural palm trees while housing antennas, microwave links, and IoT systems. Here's a deep dive into their production, technical specs, and performance parameters – engineered for minimal visual impact and maximal functionality.

Core Technical Specifications

Modern palm tree towers balance structural integrity, RF efficiency, and aesthetic camouflage.

Key parameters include:



Parameter Standard Range Advanced Models
Height 6–20m (20–65 ft) Up to 25m (82 ft)
Trunk Diameter 0.8–1.2m 1.5m (with internal ladder)
Wind Resistance 150 km/h (93 mph) 200 km/h (124 mph)
Antenna Capacity 6–9 sector antennas 12+ antennas + 4 dishes
RF Transparency Loss <0.7 dB <0.3 dB (specialized coatings)
Camouflage Fidelity 90% match (50m distance) 95%+ (species-specific)

Structural Materials:

  • Trunk: Galvanized steel core with fiber-reinforced polymer (FRP) bark.

  • Fronds: UV-resistant polyethylene (PE) or glass-reinforced plastic (GRP) with embedded antenna slots .

  • Foundation: Reinforced concrete base (4–6m depth, 3–5m diameter) .

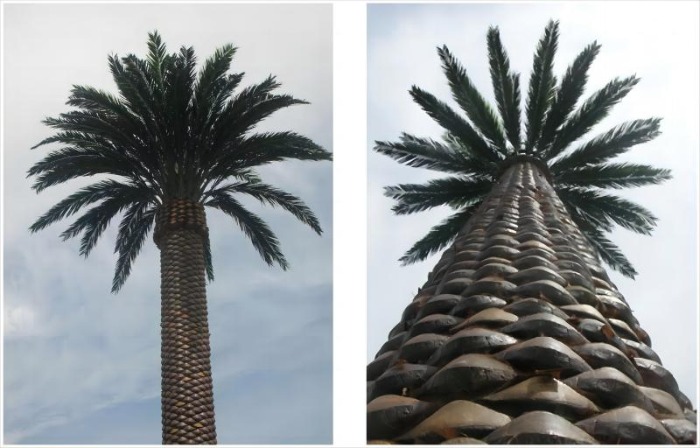

palm tree tower

Camouflage Technology: The Science of "Invisibility"

1. Biomimetic Design:

  1. Fronds replicate species like Phoenix dactylifera (date palm) using 3D laser scans of native trees.

  2. Color stability maintained for 10+ years via UV-resistant coatings (ASTM D4329 compliant).

2. RF-Optimized Materials:

  1. FRP trunk cladding with dielectric constant <2.8 ensures minimal signal attenuation.

  2. Concealed ground plane under faux "roots" reduces electromagnetic interference.

3. Environmental Integration:

  1. Bird-safe frond spacing deters nesting.

  2. Infrared-reflective coatings blend with natural canopy in aerial surveys.

Production Workflow: From CAD to Installation

1. Customization & Modeling:

  1. Site-specific scans determine local palm species morphology.

  2. 3D BIM software (e.g., Tekla Structures) designs load-bearing lattice and antenna mounts.

2. Fabrication:

  1. Trunk sections: Steel tubes galvanized (150μm zinc coating) for corrosion resistance.

  2. Fronds: Injection-molded PE/GRP with radome slots for antennas.

3. Assembly & Installation:

  1. Modular segments bolted on-site (5–7 days).

  2. Crane-assisted erection + drone-verified antenna alignment.

4. Concealment Tech:

  1. Antennas nested in upper fronds; RRUs hidden in hollow trunk compartments.

  2. Soil/landscaping masks foundation and counterpoise ring.

palm tree tower

Deployment Case Study: Dubai's Smart Palms

Location: Surf Beach & waterfront parks.
Specs:

  • Height: 6m (20 ft).

  • Frond area: 18m² for solar harvesting.

  • Services: Free Wi-Fi, device charging, emergency call points.
    Results:

  • 2.5x faster charging vs. home outlets.

  • Zero visual complaints in UNESCO heritage zones.

  • 103+ units planned across Dubai.

Critical Constraints & Solutions



Challenge Engineering Fix
Payload Limits Hybrid aluminum-steel trunk reinforcements
High-Wind Sway Tuned mass dampers + aerodynamic frond profiling
Corrosion (Coastal) ISO 12944 C5-M marine-grade coatings
Maintenance Access Retractable internal ladder + canopy platforms
